MS7000 MKII

Description

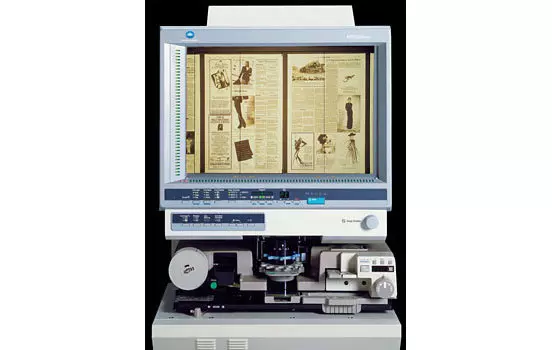

The MS7000 MK II microfilm printer gives you a large widescreen view of microfilm and microfiche originals, so you can quickly read and review more information on screen, print on paper, and scan and digitize for electronic distribution.

• 12″ × 17″ anti-glare screen for easy viewing of two-page spreads and wide originals.
• Accepts a wide range of film and fiche carriers for microfiche, jackets, aperture cards, 16mm and 35mm roll film, and 16mm film cartridges.
• The microfilm printer even offers a check stacking function that allows you to scan and print check front and back on a single sheet.
• Other features include:
  • Auto imaging and enhancement features let you adjust image position and alignment, zoom in on hard-to-read areas, enhance quality and trim and mask scan areas.
  • High-resolution PC scanning enables you to incorporate microform information in websites, Emails, faxes and desktop publishing projects.
  • Built-in SCSI-2 connector for PC interface and high-speed video connector for fast direct microfilm printing.
  • Switch from PC scanning to laser printing at the touch of a front-panel button.
  • Laser printer and wide-format microfilm printer options give you output to match the needs of your application — and two MS7000 MK II scanners can share a single printer for greater cost-efficiency.

Features

• Fast, Flexible Widescreen Viewing
  • ​Front-panel control button easily switches from PC scanning at up to 800 dpi to laser microfilm printing at up to 20 sheets per minute to speed your work sessions.
• Multi-Carrier Support
  • ​Supports microfiche, jackets, aperture cards, 16mm and 35mm roll film, and 16mm film cartridges.
• Laser Printer Option
  • ​Expand the capability of the MS7000 MKII with the option for a laser printer. The microfilm printer provides 20 ppm output
• KIP Starprint
  • ​Wide-format printer option gives you a total read/scan/print solution for engineering, maintenance and manufacturing applications.
• “Push” Scanning
  • ​Lets you initiate PC scans and adjust scanning parameters directly from your MS7000 MKII microfilm printer control panel.
• Dual Interface
  • ​Standard SCSI-2 for PC connection, plus a high-speed video connector.
• Selectable Scanning Density
  • ​200, 300, 400, 600 or 800 dpi lets you balance scanning speed and image quality to meet your needs.
• Auto Imaging Features
  • ​Motorized image rotation, auto focus (with option), auto skew correction, prism lens, auto centering and auto frame masking.
• Check Stacking Function
  • ​View checks on screen, scan front and back, crop and de-skew each image independently, and output both sides automatically on a single 8-1/2″ × 11″ sheet.
• Manual Trimming and Masking Option
  • ​Select and verify the exact scan area you want.
• Digital Image Enhancement
  • ​Correct density, contrast, resolution and sharpness.
• Electronic Zooming
  • ​Reduce or magnify your image from 50% to 200%.
• Component Scanner/Printer Design
  • ​Allows you to configure your system the way you want it.
